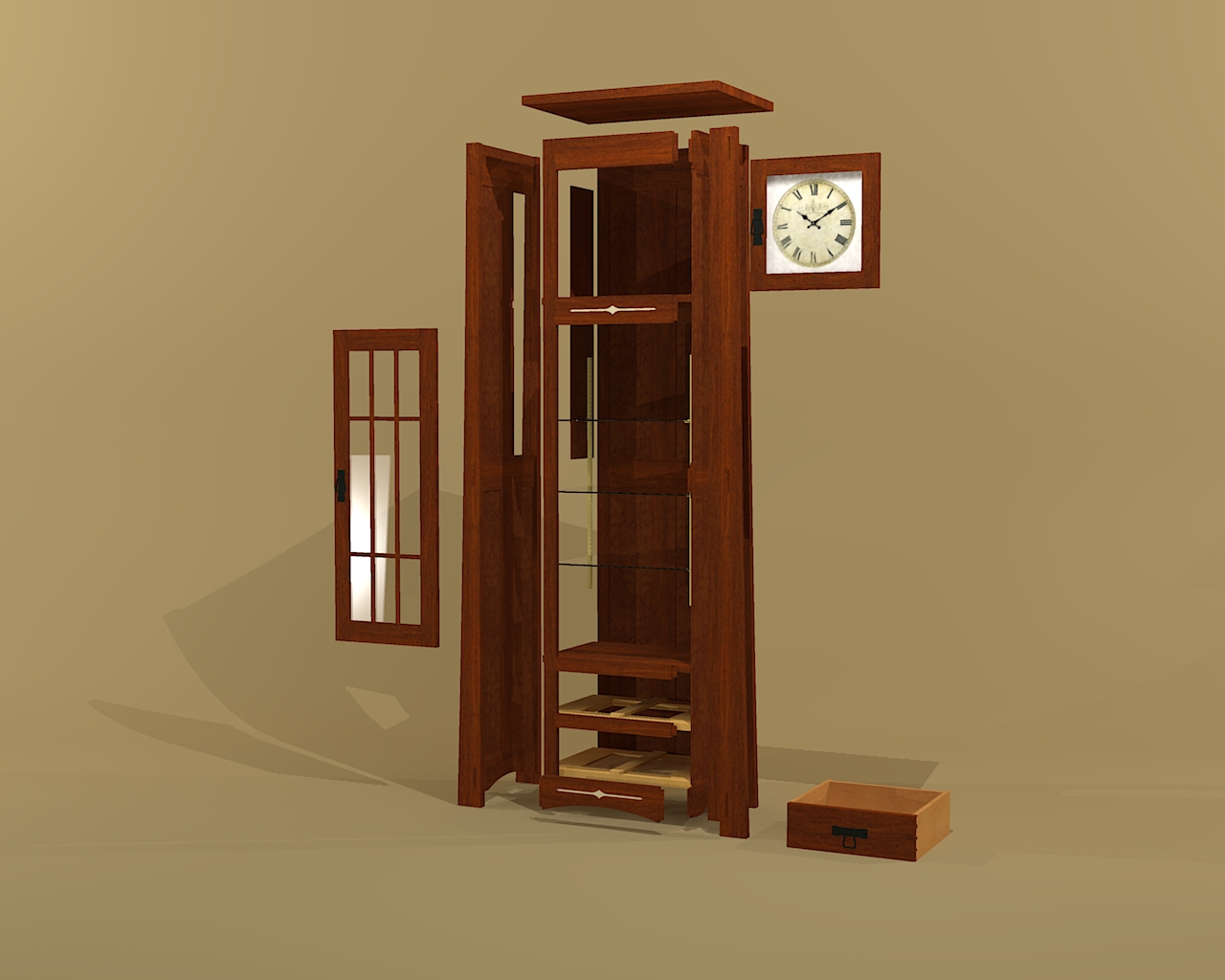

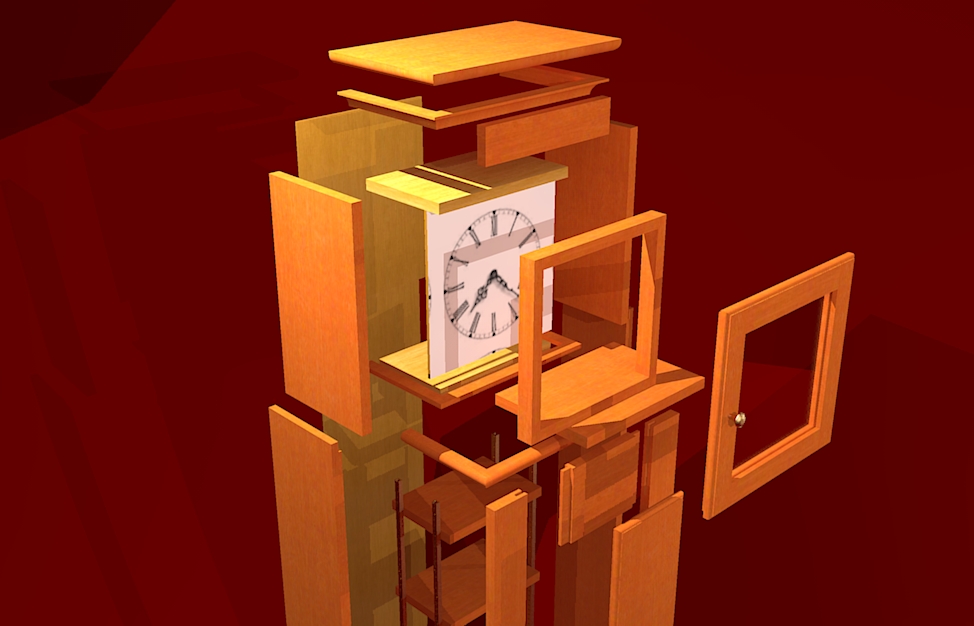

All drawings are to scale, have appropriate joinery and are drawn using components so that the SketchUp Model can be exploded apart for detail sizing and analysis.  The rendered pictures were done using Kerkythea rendering software.  All drawings are available for download.

Clocks

Country
Woodcrafts

Description Photos SketchUp
Model

Arts & Crafts Oak Curio Clock

An Arts & Crafts or Mission style curio clock made in solid Oak.  The joinery is made using mortise and tenon.

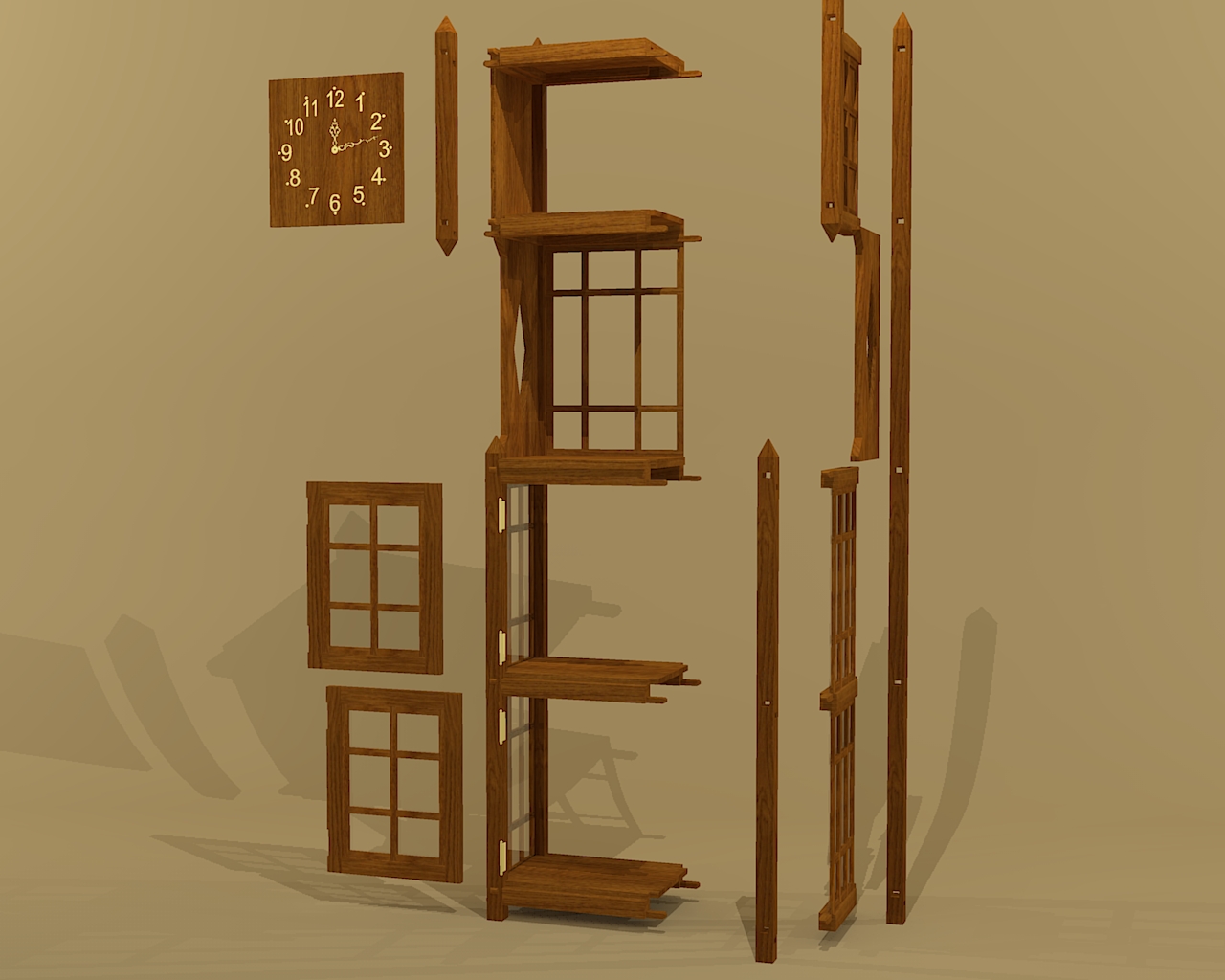

Arts & Crafts Hall Clock

An Arts & Crafts or Mission style hall clock. The case work is made using framed glass with mullions.  The joinery is made using mortise and tenon.

Shaker Cherry Tall Clock

This is my modify version of a Shaker Tall Clock. Since it is setup for a quartz clock movement, I have added adjustable shelving to the bottom compartment. The lower shelf is designed so that it will come out to reveal a hidden lower compartment. The clock is 78" high.

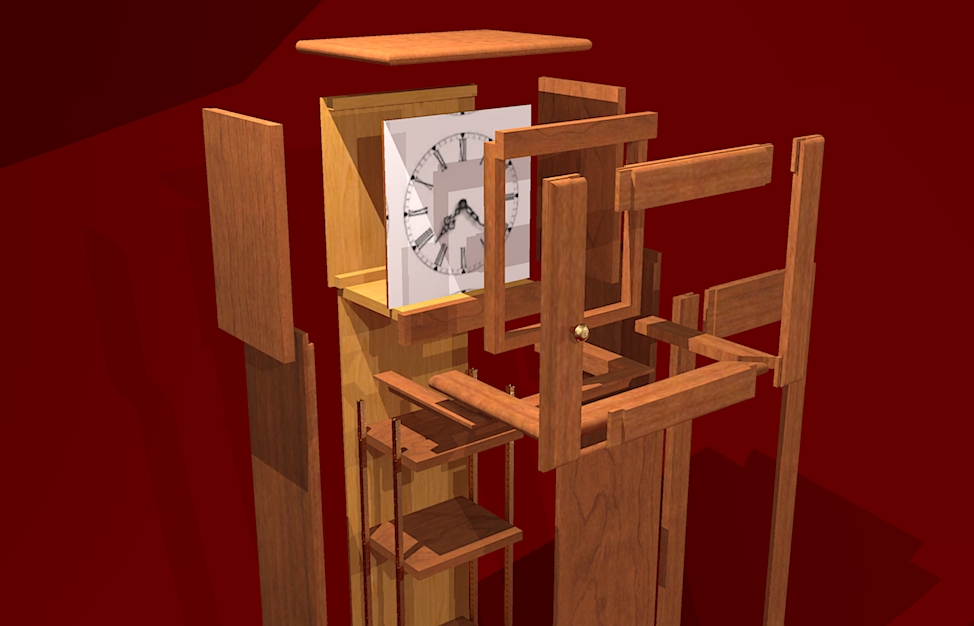

Shaker Chatham Village Tall Clock

This Shaker clock is designed from one that is in the Shaker Museum in Old Chatham Village, NY.  Since the clock is setup for a quartz movement, I have added adjustable shelving to the bottom compartment. The lower shelf is designed so that it will come out to reveal a hidden lower compartment. The clock is 70" high.



Shaker Tall Clock - Benjamin Youngs

This simple and plain Shaker Tall Clock is based on the one that is believed to be made by Benjamin Youngs out of the Watervliet community in upstate New York. The clock is tall at 6' 8". The design has been slightly modified to accommodate a quartz clock movement.

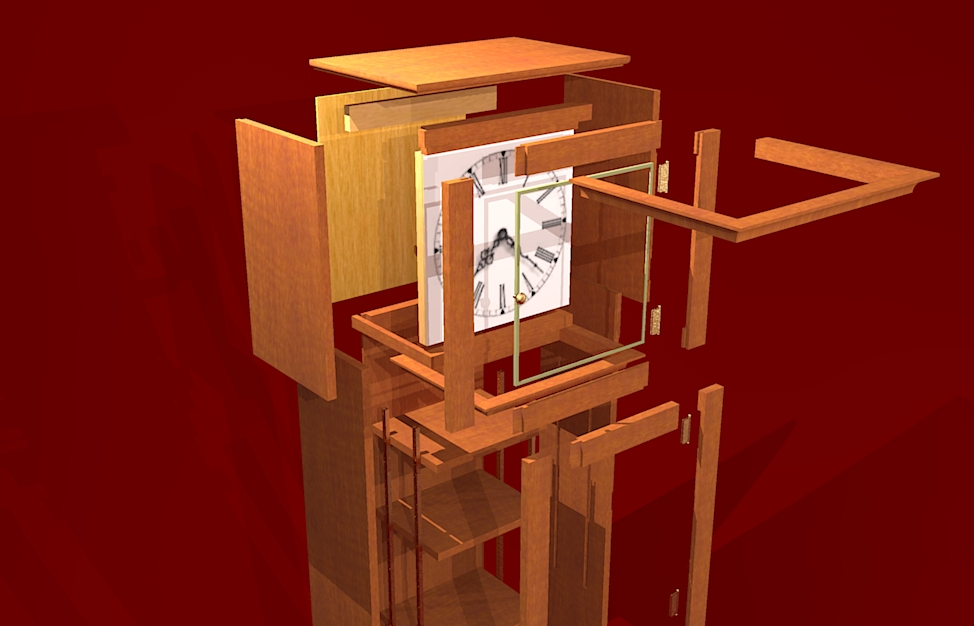

Shaker Style Tall Clock

Although not a true Shaker clock, this design has a simple styling found in many Shaker clocks.  This design provides display shelves in an open waist and storage in the base compartment.

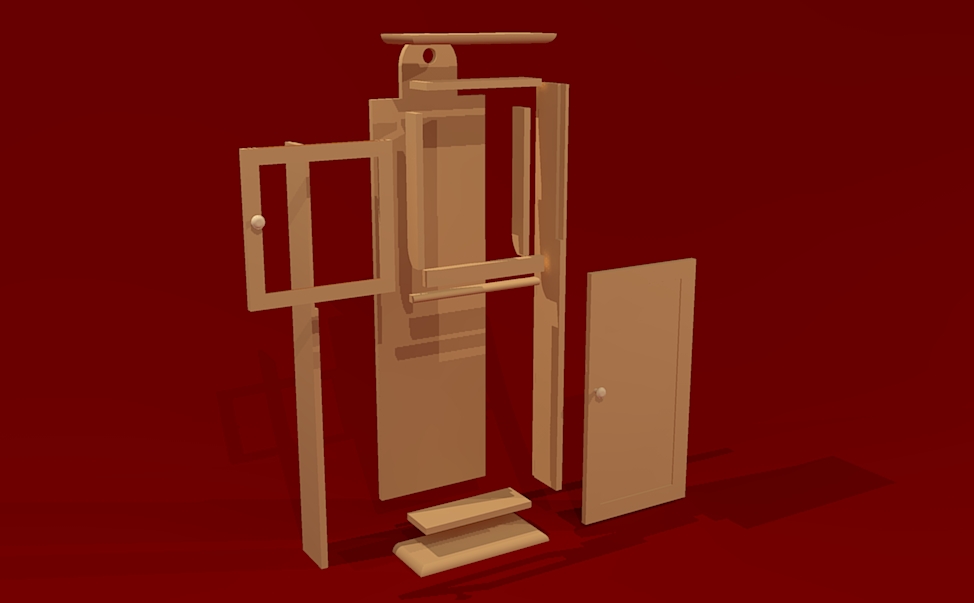

Shaker Wall Clock

This design comes from the Fine Woodworking magazine, July/August of 2002.  It's a simple and classic Shaker design.
